Price: $4,159 Inc

Price: $4,159 Inc

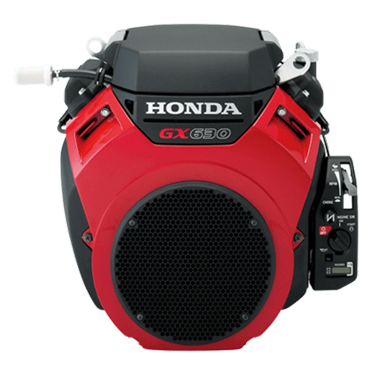

Engine Type: GX630

Given our huge range of Honda small engines please contact us about other options

APPLICATIONS

Honda's V-Twin range of engines are the cream of the crop, powering pressure washers, water pumps and commercial lawncare equipment.

The GX630 V-Twin can also be found in cultivators, agricultural equipment and generators as well as heavy-duty forestry and industrial industries.

FUEL EFFICIENT OPERATION

The fuel economy of the GX630 V-Twin is similar to fuel injection, with the simplicity of carburetion ensuring that running this unit is easy on both your pocket and the environment.

It features a digital CDI ignition system with variable timing, as well as a forged steel crankshaft and insert style rod bearings for efficient operation. There's also a rev limiter to protect against damage from over-revving.

Add a two barrel inner-vent carburetor for more precise fuel metering and a 9.3:1 compression ratio, and you'll be generating high power output without the need for premium fuel.





PROVEN RELIABILITY

The GX630's high capacity pump facilitates consistent oil delivery, and a handy oil alert will help protect your motor from running dry.

There's a dual cylindrical air filter, and a large diameter air intake on board for superior cooling.

The result is a long-lasting, high-performing and reliable engine.



PRODUCT CODE

GX630RHQZB3

MODEL

GX630

TYPE

Air cooled 4-stroke OHV petrol engine, 90° V-twin design, horizontal shaft

BORE & STROKE

2 / 78 x 72 mm

DISPLACEMENT

688cm3

COMPRESSION RATIO

9.3:1

NET POWER

15.5 kW (20.8 HP) / 3 600 pm

CONTINUOUS RATED POWER

10.5 kW (14.1 HP) / 3000rpm 12.0 kW (16.1 HP) / 3600rpm

MAXIMUM NET TORQUE

48.3Nm / 4.93kgfm / 2500rpm

IGNITION SYSTEM

Digital CDI with variable ignition timing

STARTING SYSTEM

Electric starter

COOLING SYSTEM

Forced-Air

FUEL CONSUMPTION AT RATED POWER

6.0 L/hr - 3600rpm

RECOMMENDED FUEL

Unleaded

LUBRICATION SYSTEM

Full-pressure

OIL CAPACITY

1.9L

DIMENSIONS

405 x 410 x 438mm

DRY WEIGHT

44.4kg



This product comes with a 3-year commercial warranty. With regular servicing by a Honda authorised dealer and using Genuine Honda Spare Parts it will work hard for many years.

Honda has a comprehensive dealer network that covers all of New Zealand with highly trained technicians and knowledgeable sales staff to help you make the right choice first time.

CONDITIONS OF WARRANTY
