Price: $1,965 Inc

Price: $1,965 Inc

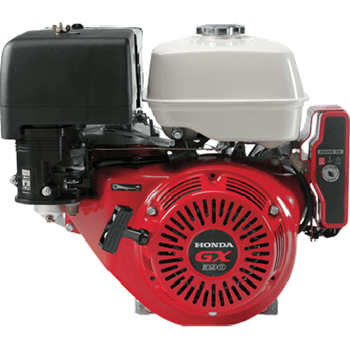

Engine Type: GX390
Fuel Capacity: 6.1 Litres

Given our huge range of Honda small engines please contact us about other options

THE NEXT GENERATION OF GX ENGINES

With the GX390, you’re looking at one of the best engines in the business. More power. Quieter performance. Lower fuel consumption. Lower emissions. Better features. Exceptional performance. Honda’s GX series lives up to the legend, and then some.

Used in all kings of commercial, agricultural and forest equipment. Its also used for small vehicles, water pumps and commercial lawn and garden equipment.

HARDWORKING AND ROBUST

A digital CDI ignition system with variable timing and an increased compression ratio combines with the GX390's Precision Camshaft design to offer precise valve timing and optimal valve overlap for better fuel efficiency.

It draws on decades of Honda engineering with its OHV design, delivering increased efficiency and optimal power transfer where and when you need it.

The use of lightweight, noise-reducing materials and a forged steel crankshaft & rigid crankcase results in an exceptionally quiet engine – an improved piston design reduces mechancal noise, with an overall reduction of engine noise by up to 5dB.



GREAT FEATURES

The GX390 offers precision-engineered components resulting in lower vibration, and a Ball Bearing-supported Crankshaft for greater stability. It also offers an improved piston design and a heavy duty balancer shaft to deliver smooth performance.

Helical cut gears, a large capacity, multi-chamber exhaust system and sophisticated air intake system also makes for an exceptionally quiet engine.

And with oil alert, a simple throttle control, large Fuel Tank and automotive type fuel cap, dual oil drains and fills, an easily accessible spark plug make it easy to use and maintain.



MODEL

GX390

TYPE

4-stroke, overhead valve, single-cylinder, horizontal shaft

BORE & STROKE

88 x 64mm

DISPLACEMENT

389cm3

COMPRESSION RATIO

8.0:1

NET POWER

8.2kW (11.0HP) at 3,600rpm

MAXIMUM NET TORQUE

25.1Nm at 2,500rpm

IGNITION SYSTEM

Transistorised magneto ignition

STARTING SYSTEM

Recoil (Electric Starter Optional)

COOLING SYSTEM

Forced-Air

PTO SHAFT ROTATION

Counter-clockwise (from P.T.O. side)

FUEL CONSUMPTION AT RATED POWE

3.7 L/h at 3,600rpm

RECOMMENDED FUEL

Unleaded

LUBRICATION SYSTEM

Splash

RECOMMENDED OIL

10W/30 API SG

OIL CAPACITY

1.1L

FUEL TANK CAPACITY

6.1L

DIMENSIONS

405 x 450 x 443mm

DRY WEIGHT

31kg



This product comes with a 3-year commercial warranty. With regular servicing by a Honda authorised dealer and using Genuine Honda Spare Parts it will work hard for many years.

Honda has a comprehensive dealer network that covers all of New Zealand with highly trained technicians and knowledgeable sales staff to help you make the right choice first time.
