Price: $763 Inc

Price: $763 Inc

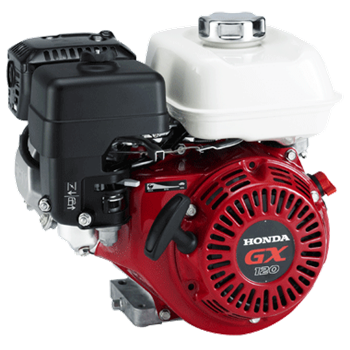

Engine Type: GX120
Fuel Capacity: 2.0 Litres

Given our huge range of Honda small engines please contact us about other options

A POPULAR CHOICE

Honda’s GX series engines are legendary for superior reliability and performance. Low noise levels, low vibration and low emissions – without sacrificing power output or performance.

Used in construction/industrial equipment and agricultural, it is also a popular choice of engine for commercial lawn and garden equipment.

FUEL EFFICIENT, HIGH OUTPUT OPERATION

The GX120's Precision Camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency. It draws on decades of Honda engineering with its OHV design, delivering increased efficiency and optimal power transfer.

The GX120 boasts a high compression ratio for better fuel efficiency making it an economical motor to run.

SMOOTH OPERATOR

A ball bearing-supported crankshaft and precision engineered components result in greater stability and lower vibration.

The use of lightweight, noise-reducing materials and a forged steel crankshaft & rigid crankcase results in an exceptionally quiet engine that incorporates a large capacity, multi-chamber exhaust system. And with a sophisticated air intake system, dual element air cleaner and cast iron cylinder sleeve, the GX120 is built durable and tough.

EASY TO USE AND MAINTAIN

With simple throttle control, large fuel tank, large automotive type fuel cap and easily accessible spark plug; Honda engine designers always have the user front-of-mind.



WARRANTY

This product comes with a 4-year domestic warranty* or a 3-year commercial warranty. With regular servicing by a Honda authorised dealer and using Genuine Honda Spare Parts it will work hard for many years.

Honda has a comprehensive dealer network that covers all of New Zealand with highly trained technicians and knowledgeable sales staff to help you make the right choice first time.



CONDITIONS OF WARRANTY



Contact us  or enquire below



MODEL

GX120

TYPE

4-stroke, overhead valve, single-cylinder, horizontal shaft

BORE & STROKE

60 x 42mm

DISPLACEMENT

118cm3

COMPRESSION RATIO

8.5:1

NET POWER

2.6kW (3.5HP) at 3,600rpm

CONTINUOUS RATED POWER

2.1kW (2.8HP) at 3,600rpm

MAXIMUM NET TORQUE

7.3 Nm at 2,500rpm

IGNITION SYSTEM

Transistorised magneto ignition

STARTING SYSTEM

Recoil Starter

COOLING SYSTEM

Forced-Air

PTO SHAFT ROTATION

Counter-clockwise (from P.T.O. side)

FUEL CONSUMPTION AT RATED POWER

1.0 L/h at 3,600 rpm

RECOMMENDED FUEL

Unleaded

LUBRICATION SYSTEM

Splash

RECOMMENDED OIL

10W/30 API SG

OIL CAPACITY

0.6L

FUEL TANK CAPACITY

2.0L

DIMENSIONS

305 x 341 x 318mm

DRY WEIGHT

13.0kg
